LANGELINIE VIEWPOINT
LANGELINIE AND MARBLE PIER, COPENHAGEN (DENMARK)
ADVANCE BUILDING DESIGN COURSE (DTU)
The building designed acts like a lighthouse, like a symbol, when coming closer to Copenhagen. The final shape of both towers on Langelinie and Marble pier constitute a wide V-form. This is due to the fact of following harbor line. Consequently, the tower is divided into two organizational parts, both parts follow the angle between the basin and the entrance from the sea.
In combination with the bridge, the building constitutes an “entrance door” to the harbor. In addition to that, on Langelinie pier this shape continues the line of buildings, which already exists there and leads the top towards the open sea.
The higher tower is the one on Langelinie pier with a height of 109,3 m, whereas the smaller one on Marble pier measures 79,7 m. The connecting bridge is located on the 18th floor and in a height of 68,6 m. The building on Langelinie pier has 28 floors with a height of 3,7 m above the ground floor, which is 5,7 m, the Marble tower is 19 floors above ground with the same room heights.
SITE PLAN
APPROACH TO LANGELINIE TOWER
Site plan Langelinie and Marble Pier

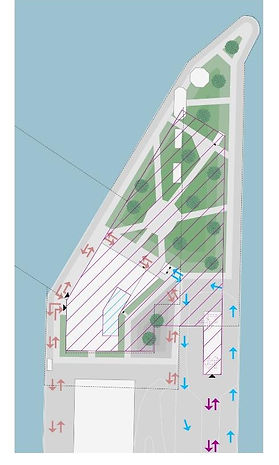

Traffic distribution around the building
ELEVATION
North elevation
LANGELINIE PIER TOWER
LANGELINIE PIER
MARBLE PIER
DISTRIBUTIOIN OF AREAS

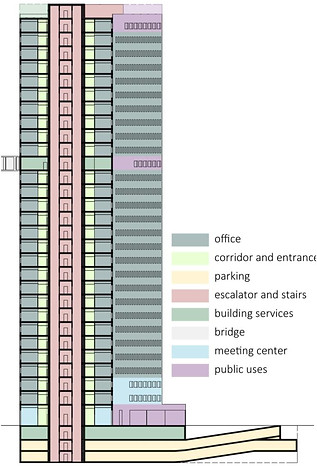

Different areas inside the building

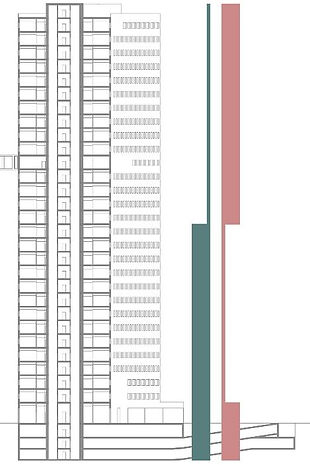

Elevators distribution on each core
FLOORPLANS

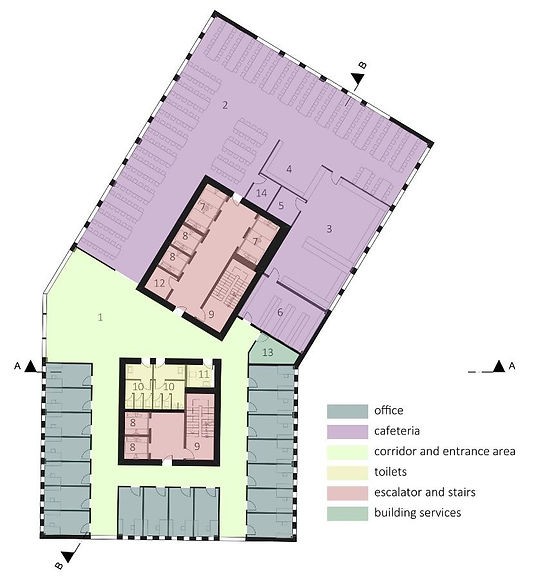

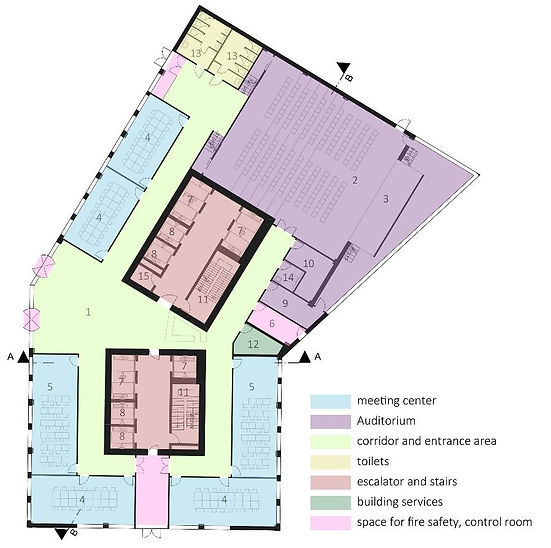

Groundfloor plan

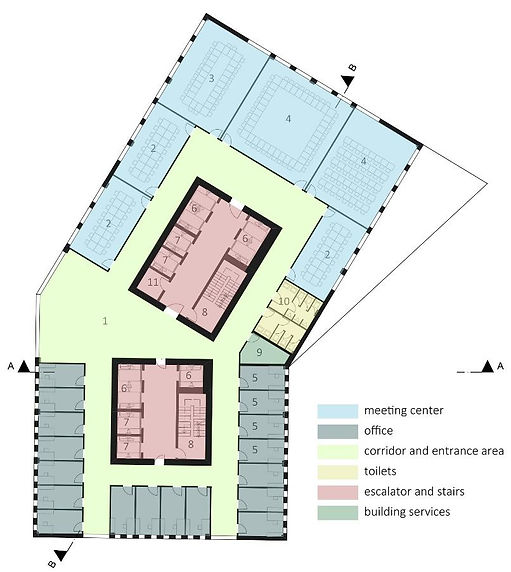

First floor plan
Open office floor plan

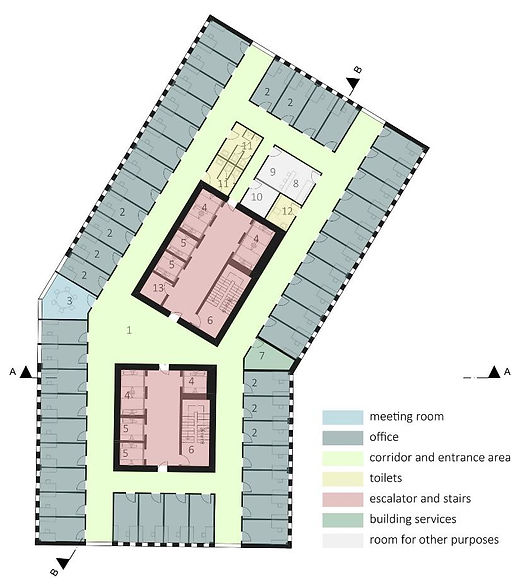

Single office floor plan

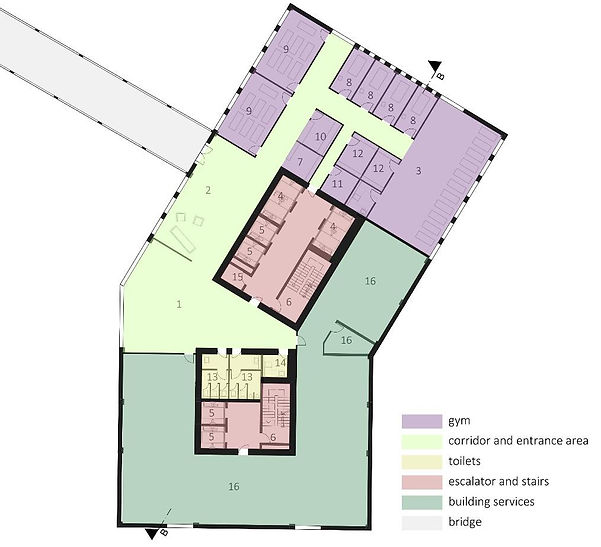

Level 18th floor plan - Bridge connection
Level 28th floor plan

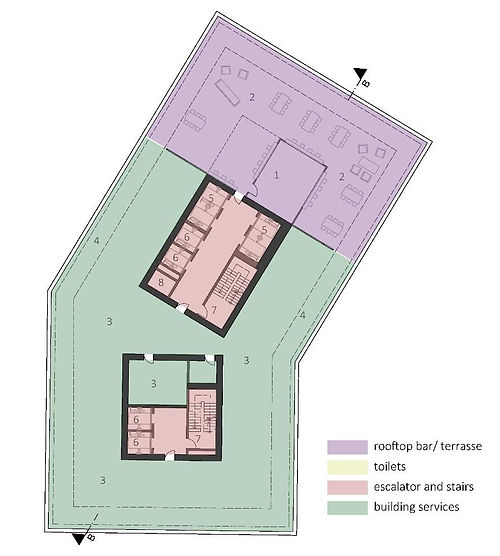

Level 29th floor plan

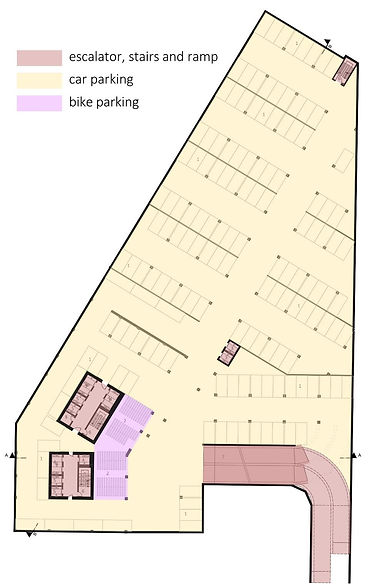

Level -3 - Basement floor plan
SHAFT DEDSIGN

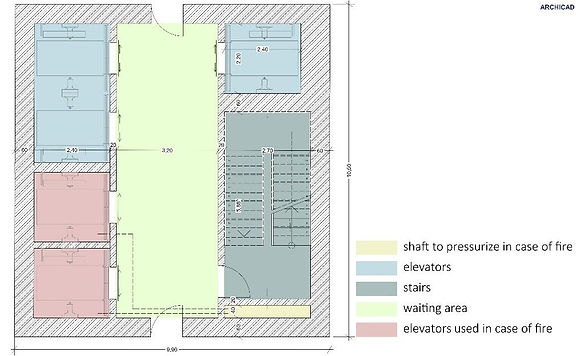

Layout of the central core

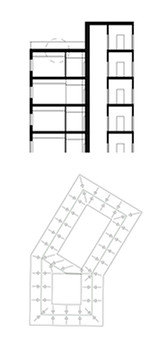

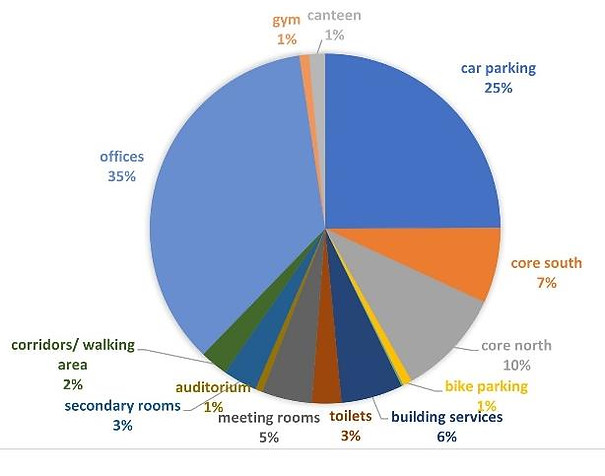

AREAS DISTRIBUTION INSIDE THE BUILDING
AREAS TO FOCUS

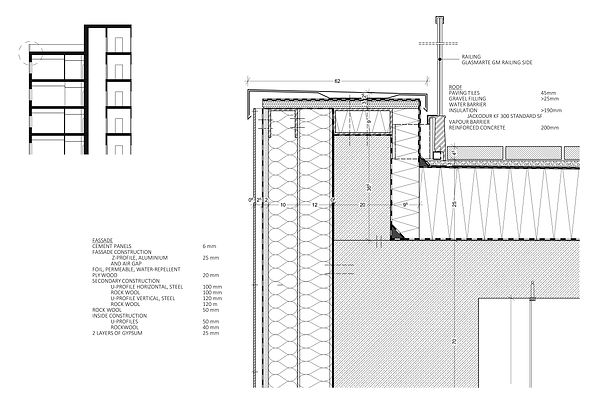

CONNECTION BETWEEN ROOF - EXTERNAL FACADE
CONNECTION BETWEEN EXTERNAL FACADE - FLOOR CONSTRUCTION
CONNECTION BETWEEN FLOOR CONSTRUCTION - CENTRAL CORE
CONNECTION BETWEEN DIFFERENT CEILING HEIGHTS
CONSTRUCTION DETAILS
CONNECTION EXTERNAL FACADE - BALCONIES FLOOR CONSTRUCTION

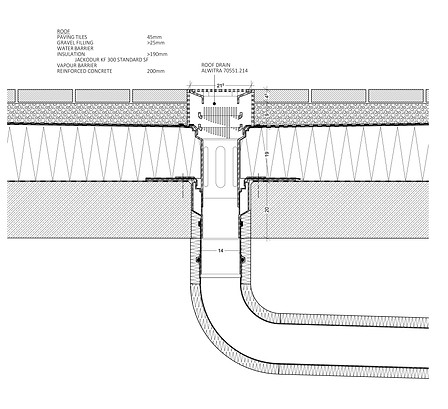

CONNECTION SEWER SYSTEM - BALCONIES FLOOR CONSTRUCTION
Location of the sewer pipes

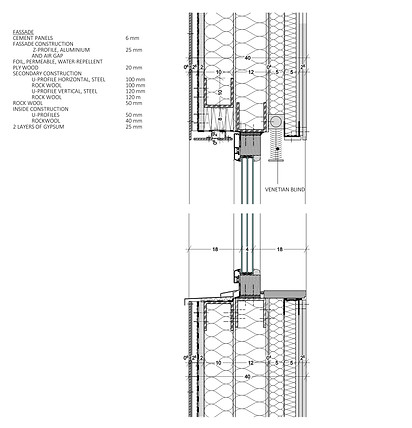

CONNECTION WINDOW - EXTERNAL FACADE

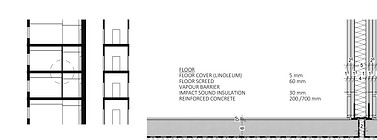

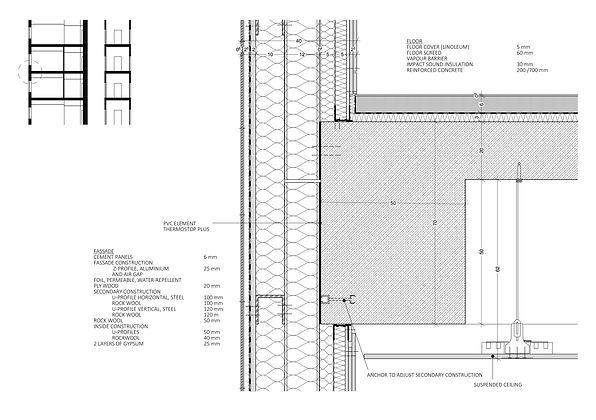

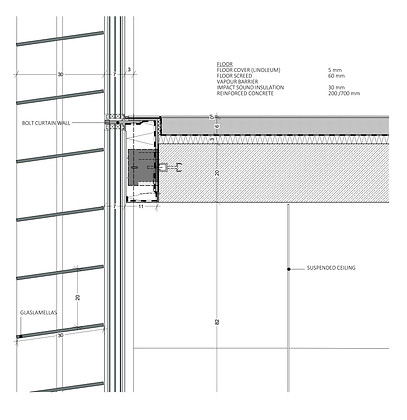

CONNECTION FACADE - FLOOR CONSTRUCTION

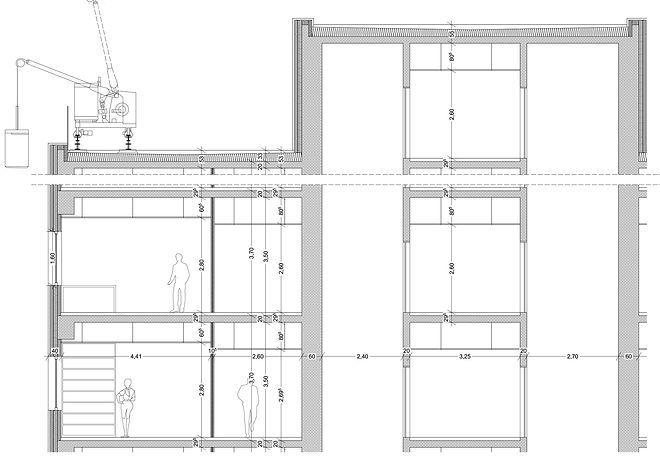

CONNECTION DIFFERENT CEILING HEIGHTS

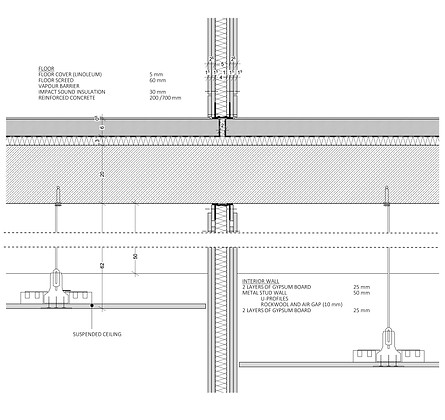

CONNECTION FLOOR - CENTRAL CORE

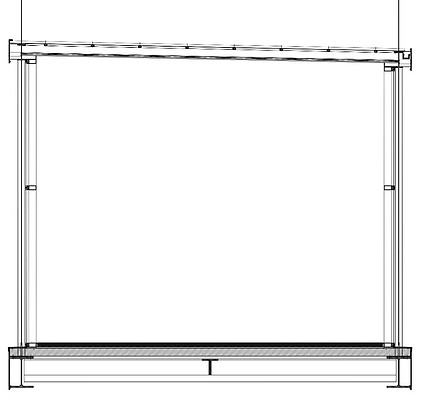

CONSTRUCTION DETAILS BRIDGE
CONSTRUCTION DETAILS FACADE SHADINGS
CONNECTIONSHADING ELEMENT - FAÇADE
FAÇADE DESIGN
Façade grid layout
SINGLE OFFICE PLAN
Single offices distribution
3D single office
DAYLIGHT FACTOR STUDY

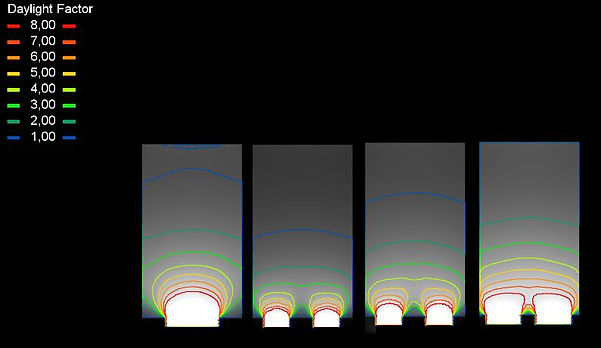

Window size study affecting daylight factor in single offices
Daylight factor open office floor

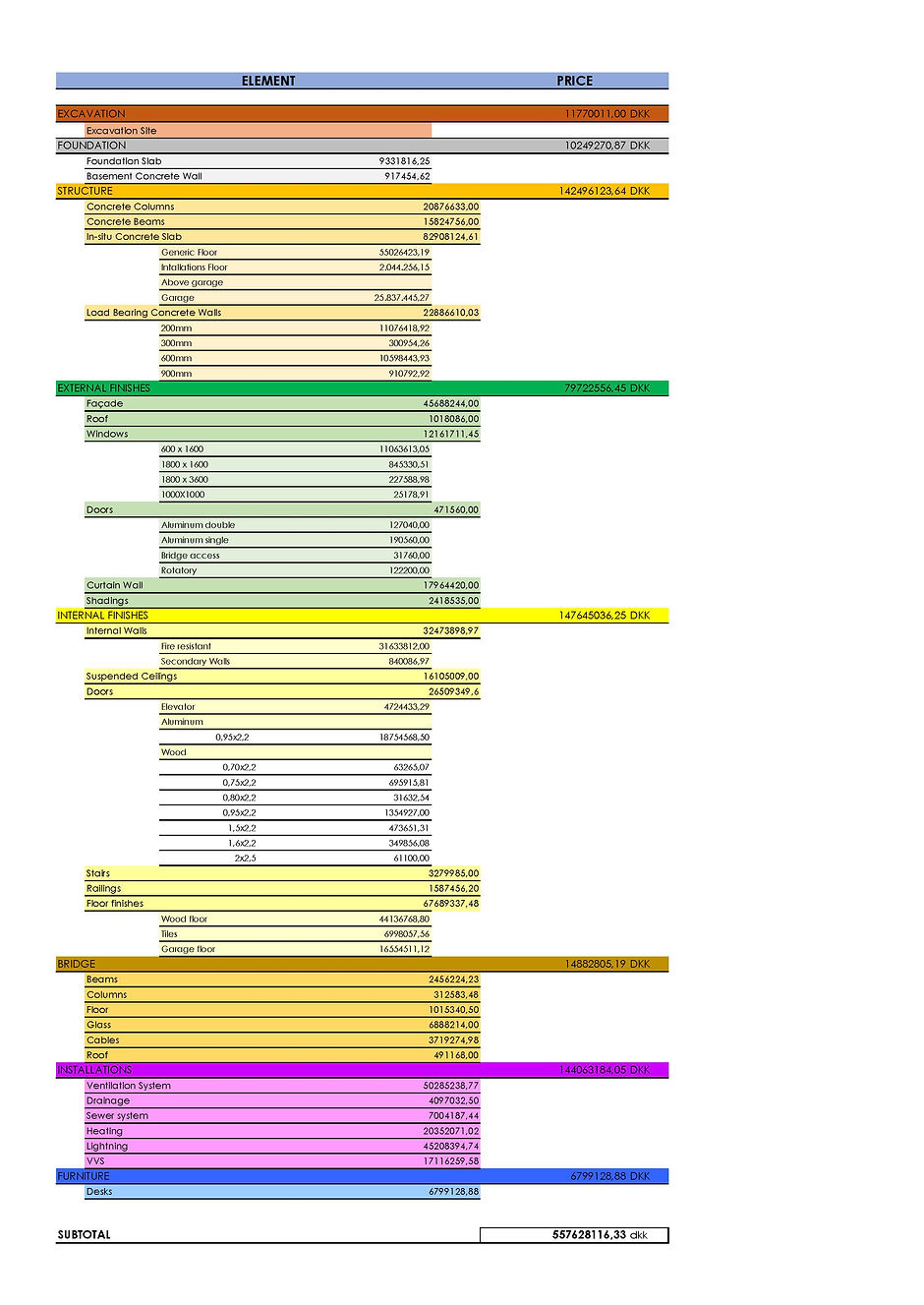

COST ESTIMATION
Daylight factor open office floor
GROSS AREA
36.748 m²
21.521,8614 DKK/m²
